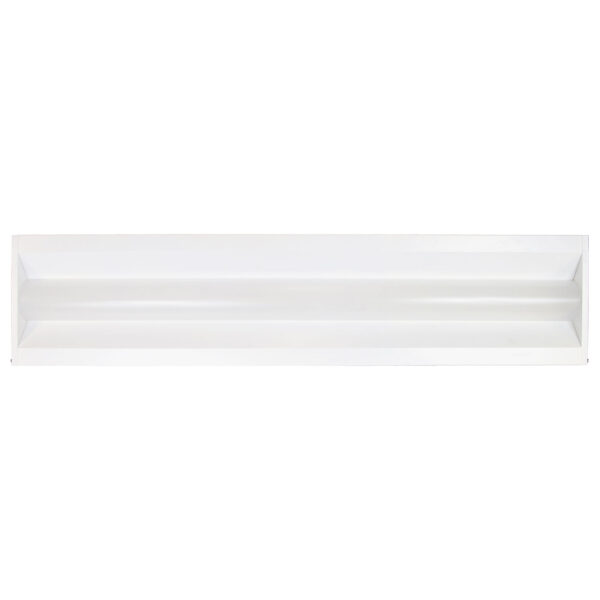

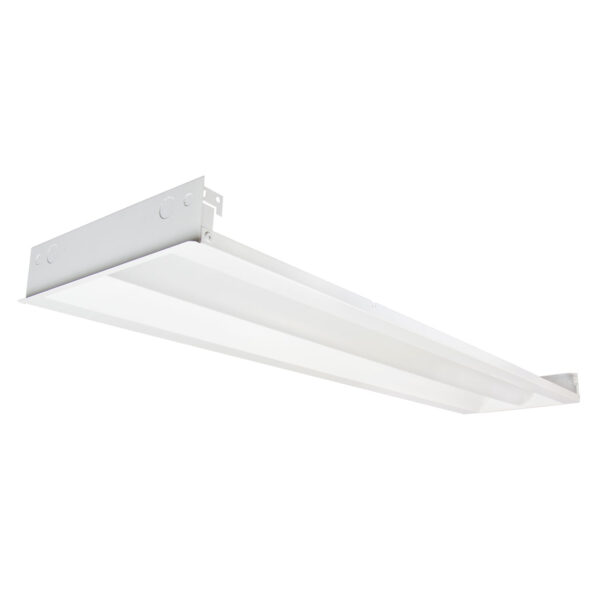

830 SELECTABLE SINGLE BASKET TROFFER • 1×4

SKU ESL-CSS-830-14-2030W-3550K Category

KEY FEATURES & BENEFITS:

  • Kelvin and Wattage Selectable

  • Standard 1–10V Continuous Dimming

  • Integrated Occupancy Sensor Capable

DOWNLOAD RESOURCES

CatalogIES Installation GuideSpec Sheet

PRODUCT DATA

Selectable Wattage:20W–25W–30WInput Voltage:120–277 VAC
Selectable Kelvin:3500K–4000K–5000KCRI:>80
Lumens:Up to 3,840Input Frequency:50/60Hz
Efficacy:Up to 128 lm/WDimensions:47.8" x 11.7" x 2.0"

CATALOG INFORMATION

ITEM #SELECTABLE WATTAGESELECTABLE KELVIN MAX LUMEN OUTPUT MAX EFFICACY (LM/W) INPUT VOLTAGEDLC QPL CODE
1x4 SELECTABLE SINGLE BASKET TROFFER
ESL-CSS-830-14-2030W-3550K20W–25W–30W3500K–4000K–5000K3,840128120–277 VACS-H5DUB1
2x2 SELECTABLE SINGLE BASKET TROFFER
ESL-CSS-830-22-2535W-3550K25W–30W–35W3500K–4000K–5000K4,375125120–277 VACS-ZDK860
2x4 SELECTABLE SINGLE BASKET TROFFER
ESL-CSS-830-24-3445W-3550K34W–38W–45W3500K–4000K–5000K5,625128120–277 VACS-X7C2MV
