EMG DRIVER
SL6-JB • 15Watt
KEY FEATURES & BENEFITS:
-

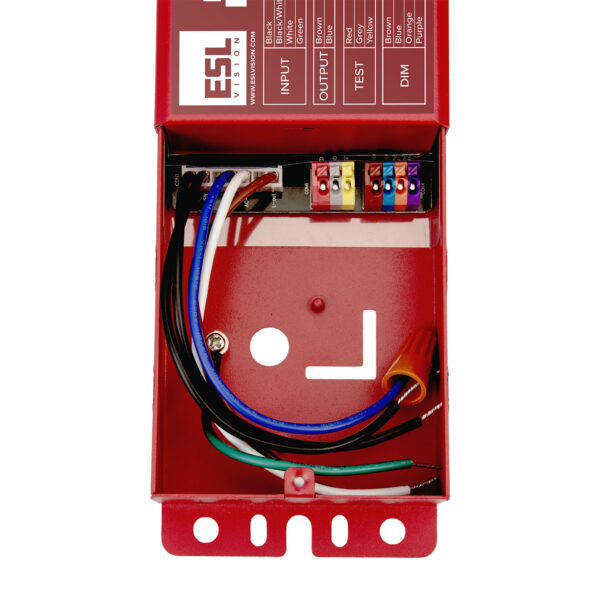

Easy Installation with Large Wiring Cavity
-
Compatible with AC Input Lamps and DC Output Drivers
-
UL 924 and tested to CSA C.22.2 No. 141 Emergency Lighting Compliant
DOWNLOAD RESOURCES
PRODUCT DATA
| Part Number: | ESL-EMG-SL6-JB-15W | ||
| INPUT | |||
| Rated Current | 200mA | Rated Voltage: | 100–347 VAC, 50–60Hz |
| Rated Power: | 12 Watts | ||
| OUTPUT | |||
| Emergency Output Power: | 15 Watts Max | Output Voltage: | 170 VDC |
| EMERGENCY | |||
| Emergency Operation: | ≥90 Minutes | Charging Time: | 24 Hours |
| Charging Cycles: | >1,000 | ||
| ENVIRONMENT | |||
| Operating Temperature: | 32° to 122°F (0° to 50°C) | Dimensions (LxWxH): | 14.17" x 3.15" x 1.57" |
| Weight: | 2.54 lbs | ||
