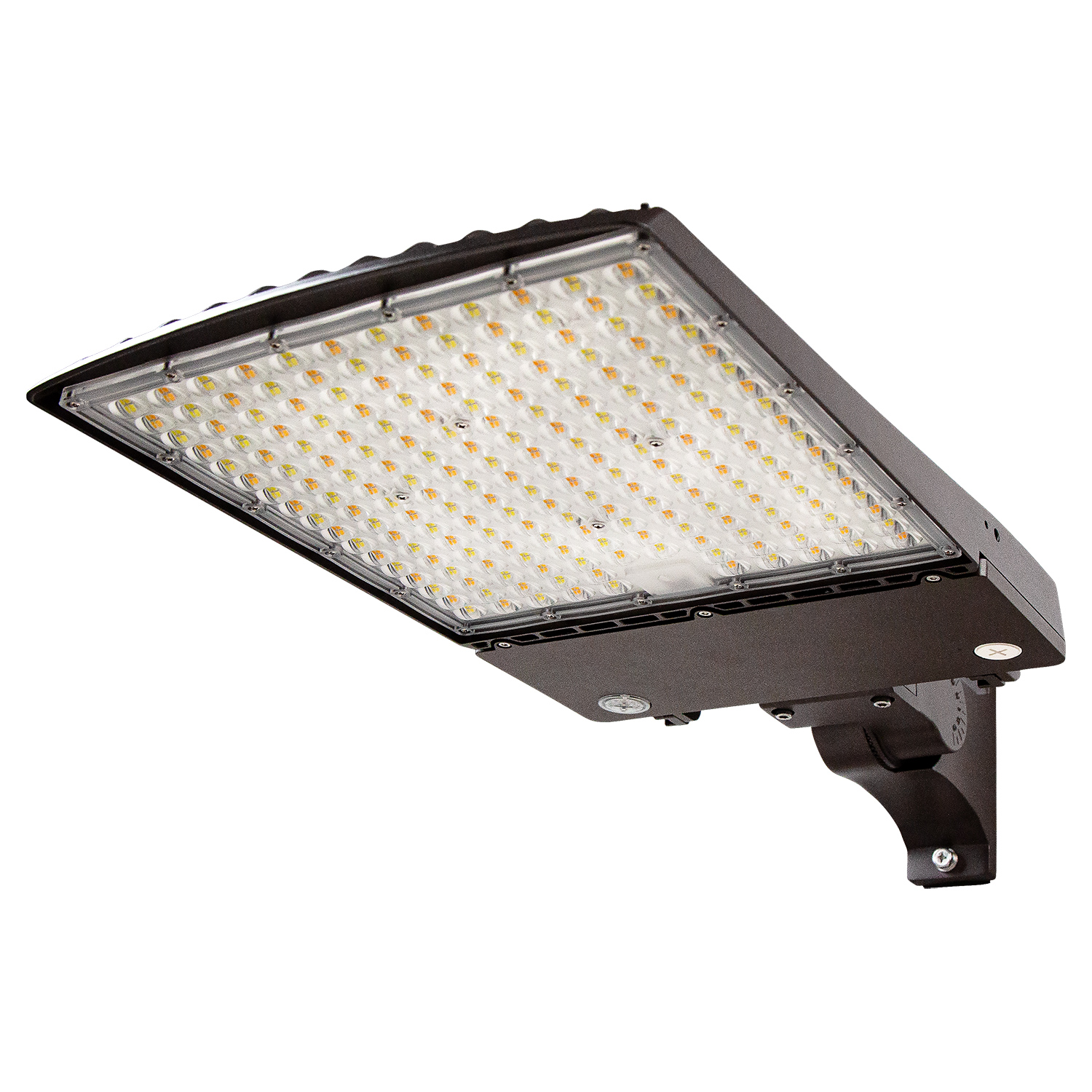

AREA LIGHTSELECTABLE AREA LIGHT200300W •

ITEM #	SELECTABLE WATTAGE	SELECTABLE KELVIN	INPUT VOLTAGE	MAX LUMEN OUTPUT	MAX EFFICACY (LM/W)	DIMENSIONS
ESL-AL-100150W-D13050 ESL-AL-100150W-D13050-HV	100W–120W–150W	3000K—4000K—5000K	120–277 VAC, HV: 277–480VAC	25,500	170	16.63" x 8.66" x 2.07"

ESL-AL-200300W-D13050 ESL-AL-200300W-D13050-HV	200W–240W–300W	3000K—4000K—5000K	120–277 VAC, HV: 277–480 VAC	51,000	170	20.05" x 11.89" x 2.07"

ESL Vision, ESL-AL-200320W-13050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-AL-200320W-13050.pdf
2024-01-09 14:45:44
spec-sheets

ESL Vision, ESL-AL-75150W-13050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-AL-75150W-13050.pdf
2024-01-09 14:45:26
spec-sheets

ESL Vision, ESL-CP-3060W-43050-xx — Canopy

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-CP-3060W-43050-xx.pdf
2024-08-15 13:36:34
spec-sheets

ESL Vision, ESL-CP-3060W-53050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-3060W-53050-BZ.pdf
2025-10-06 01:43:11
spec-sheets

ESL Vision, ESL-CP-3060W-53050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-3060W-53050-WH.pdf
2025-10-06 01:43:13
spec-sheets

ESL Vision, ESL-CP-6090W-53050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-6090W-53050-BZ.pdf
2025-10-06 01:43:16
spec-sheets

ESL Vision, ESL-CP-6090W-53050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-6090W-53050-WH.pdf
2025-10-06 01:43:18
spec-sheets

ESL Vision, ESL-CP-R-2555W-13050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-R-2555W-13050-BZ.pdf
2025-10-06 01:42:56
spec-sheets

ESL Vision, ESL-CP-R-2555W-13050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-R-2555W-13050-WH.pdf
2025-10-06 01:42:58
spec-sheets

ESL Vision, ESL-CP-R-60100W-13050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-R-60100W-13050-BZ.pdf
2025-10-06 01:43:00
spec-sheets

ESL Vision, ESL-CP-R-60100W-13050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-CP-R-60100W-13050-WH.pdf
2025-10-06 01:43:02
spec-sheets

ESL Vision, ESL-D2D-1030W-13050-SL —

https://eslvision.com/wp-content/uploads/2024/08/ESL-Vision-ESL-D2D-1030W-13050-SL.pdf
2024-10-30 18:37:56
spec-sheets

ESL Vision, ESL-D2D-4080W-13050-SL —

https://eslvision.com/wp-content/uploads/2024/08/ESL-Vision-ESL-D2D-4080W-13050-SL.pdf
2024-10-30 18:37:35
spec-sheets

ESL Vision, ESL-FCWP-2060W-33050 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FCWP-2060W-33050.pdf
2025-10-06 01:43:58
spec-sheets

ESL Vision, ESL-FCWP-2555W-23050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-FCWP-2555W-23050.pdf
2024-05-16 17:41:08
spec-sheets

ESL Vision, ESL-FCWP-65110W-23050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-FCWP-65110W-23050.pdf
2024-05-16 17:40:58
spec-sheets

ESL Vision, ESL-FCWP-80120W-33050 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FCWP-80120W-33050.pdf
2025-10-06 01:44:00
spec-sheets

ESL Vision, ESL-FLD-1020W-23050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-1020W-23050-BZ.pdf
2025-10-06 01:47:23
spec-sheets

ESL Vision, ESL-FLD-1020W-23050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-1020W-23050-WH.pdf
2025-10-06 01:47:25
spec-sheets

ESL Vision, ESL-FLD-105150W-13050 — Flood Lights

https://eslvision.com/wp-content/uploads/2022/10/ESL%20Vision,%20ESL-FLD-105150W-13050.pdf
2024-11-26 14:44:11
spec-sheets

ESL Vision, ESL-FLD-1535W-13050 — Flood Lights

https://eslvision.com/wp-content/uploads/2022/10/ESL%20Vision,%20ESL-FLD-1535W-13050.pdf
2024-11-26 14:44:23
spec-sheets

ESL Vision, ESL-FLD-200320W-23050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-200320W-23050-BZ.pdf
2025-10-06 01:47:34
spec-sheets

ESL Vision, ESL-FLD-3060W-23050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-3060W-23050-BZ.pdf
2025-10-06 01:47:27
spec-sheets

ESL Vision, ESL-FLD-3060W-23050-WH —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-3060W-23050-WH.pdf
2025-10-06 01:47:30
spec-sheets

ESL Vision, ESL-FLD-380500W-23050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-380500W-23050-BZ.pdf
2025-10-06 01:47:37
spec-sheets

ESL Vision, ESL-FLD-5090W-13050 — Flood Lights

https://eslvision.com/wp-content/uploads/2022/10/ESL%20Vision,%20ESL-FLD-5090W-13050.pdf
2024-11-26 14:44:35
spec-sheets

ESL Vision, ESL-FLD-75150W-23050-BZ —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-FLD-75150W-23050-BZ.pdf
2025-10-06 01:47:32
spec-sheets

ESL Vision, ESL-HZ-JBOX-xx —

https://eslvision.com/wp-content/uploads/2024/07/ESL-Vision-ESL-HZ-JBOX-xx.pdf
2024-07-26 13:50:49
spec-sheets

ESL Vision, ESL-HZEX-yy-1cc — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-HZEX-yy-1cc.pdf
2023-08-21 13:42:25
spec-sheets

ESL Vision, ESL-HZFL-SyyW-1xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-HZFL-SyyW-1xx.pdf
2023-08-21 13:40:35
spec-sheets

ESL Vision, ESL-HZFL-SyyW-2xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/07/ESL%20Vision,%20ESL-HZFL-SyyW-2xx.pdf
2023-08-21 13:38:58
spec-sheets

ESL Vision, ESL-HZJJ-yyW-1xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-HZJJ-yyW-1xx.pdf
2023-08-21 13:52:06
spec-sheets

ESL Vision, ESL-HZLHB-SyyW-1xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-HZLHB-SyyW-1xx.pdf
2023-08-21 13:45:36
spec-sheets

ESL Vision, ESL-HZLHB-SyyW-2xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-HZLHB-SyyW-2xx.pdf
2023-08-21 13:44:49
spec-sheets

ESL Vision, ESL-HZRHB-SyyW-1xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/04/ESL%20Vision,%20ESL-HZRHB-SyyW-1xx.pdf
2023-08-21 13:37:02
spec-sheets

ESL Vision, ESL-HZRHB-SyyW-2xx — Hazardous Series

https://eslvision.com/wp-content/uploads/2022/07/ESL%20Vision,%20ESL-HZRHB-SyyW-2xx.pdf
2023-08-21 13:38:17
spec-sheets

ESL Vision, ESL-LHB-105165W-54057 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-105165W-54057.pdf
2025-10-06 01:42:22
spec-sheets

ESL Vision, ESL-LHB-165240W-54057 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-165240W-54057.pdf
2025-10-06 01:42:26
spec-sheets

ESL Vision, ESL-LHB-165240W-54057-HV —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-165240W-54057-HV.pdf
2025-10-06 01:42:24
spec-sheets

ESL Vision, ESL-LHB-255320W-54057 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-255320W-54057.pdf
2025-10-06 01:42:30
spec-sheets

ESL Vision, ESL-LHB-255320W-54057-HV —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-255320W-54057-HV.pdf
2025-10-06 01:42:28
spec-sheets

ESL Vision, ESL-LHB-85130W-54057 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-LHB-85130W-54057.pdf
2025-10-06 01:42:20
spec-sheets

ESL Vision, ESL-MWP-0815W-13050-XX — Wall Packs

https://eslvision.com/wp-content/uploads/2021/02/ESL%20Vision,%20ESL-MWP-0815W-13050-xx.pdf
2021-03-22 13:52:17
spec-sheets

ESL Vision, ESL-MWP-1530W-13050-XX — Wall Packs

https://eslvision.com/wp-content/uploads/2021/02/ESL%20Vision,%20ESL-MWP-1530W-13050-xx.pdf
2021-03-22 13:51:23
spec-sheets

ESL Vision, ESL-SPT-850W-250 —

https://eslvision.com/wp-content/uploads/2023/05/ESL%20Vision,%20ESL-SPT-850W-250.pdf
2024-02-22 08:53:55
spec-sheets

ESL Vision, ESL-WP-1545W-53050 — Wall Packs

https://eslvision.com/wp-content/uploads/2022/02/ESL%20Vision,%20ESL-WP-1545W-53050.pdf
2024-01-09 15:32:29
spec-sheets

ESL Vision, ESL-WP-30100W-53050 — Wall Packs

https://eslvision.com/wp-content/uploads/2022/02/ESL%20Vision,%20ESL-WP-30100W-53050.pdf
2024-01-09 15:33:01
spec-sheets

ESL Vision, ESL-WP-4070W-63050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-WP-4070W-63050.pdf
2023-07-17 17:59:07
spec-sheets

ESL Vision, ESL-WP-4080W-73050 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-WP-4080W-73050-BZ.pdf
2025-10-06 01:46:49
spec-sheets

ESL Vision, ESL-WP-45W-4XX — Wall Packs

https://eslvision.com/wp-content/uploads/2020/01/ESL%20Vision,%20ESL-WP-45W-4xx.pdf
2020-06-18 11:09:32
spec-sheets

ESL Vision, ESL-WP-70100W-63050 —

https://eslvision.com/wp-content/uploads/2023/07/ESL%20Vision,%20ESL-WP-70100W-63050.pdf
2023-07-17 17:59:08
spec-sheets

ESL Vision, ESL-WP-80120W-73050 —

https://eslvision.com/wp-content/uploads/2025/10/ESL-Vision-ESL-WP-80120W-73050-BZ.pdf
2025-10-06 01:46:51
spec-sheets

ESL-Vision-ESL-CYL-R3-15W-13050-ffWM —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-CYL-R3-15W-13050-ffWM.pdf
2024-10-28 15:30:33
spec-sheets

ESL-Vision-ESL-CYL-R4-20W-13050-ffWM —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-CYL-R4-20W-13050-ffWM.pdf
2024-10-28 15:31:02
spec-sheets

ESL-Vision-ESL-CYL-R6-35W-13050-ffWM —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-CYL-R6-35W-13050-ffWM.pdf
2024-10-28 15:30:07
spec-sheets

ESL-Vision-ESL-PT-100160W-13050-BZ —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-PT-100160W-13050-BZ.pdf
2024-10-28 15:31:50
spec-sheets

ESL-Vision-ESL-PT-4580W-13050-BZ —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-PT-4580W-13050-BZ.pdf
2024-10-28 15:33:31
spec-sheets

ESL-Vision-ESL-WPHM-2565W-13050-ff —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-WPHM-2565W-13050-ff.pdf
2024-10-28 15:32:20
spec-sheets

ESL-Vision-ESL-WPTP-2565W-13050-ff —

https://eslvision.com/wp-content/uploads/2023/07/ESL-Vision-ESL-WPTP-2565W-13050-ff.pdf
2024-10-28 15:32:05
spec-sheets

Selectable Wattage:	200W—240W—300W	CRI:	>80
Selectable Kelvin:	3000K—4000K—5000K	L70 Lifetime 120,000 hrs Calculated per TM21
Lumens:	Up to 51,000 Lumens	Operating Temperature:	-40°F to 122°F
Efficacy:	Up to 170 lm/W	Dimensions:	20.05” x 11.89” x 2.07”
Input Voltage:	120–277 VAC	Weight:	6.2lb
Dimming:	0–10V Dimming	Default Settings:	300W, 4000K

AREA LIGHT
SELECTABLE AREA LIGHT
200300W

KEY FEATURES & BENEFITS:

Kelvin and Wattage Selectable

Die-Cast Aluminum Housing

High Quality PC Lens

IP65 Rated

OUTDOOR FIXTURE SPEC SHEETS

AREA LIGHTSELECTABLE AREA LIGHT200300W

KEY FEATURES & BENEFITS:

Kelvin and Wattage Selectable

Die-Cast Aluminum Housing

High Quality PC Lens

IP65 Rated

Alternative Wattages

AREA LIGHTSELECTABLE AREA LIGHT200300W HV

AREA LIGHTSELECTABLE AREA LIGHT100150W HV

AREA LIGHTSELECTABLE AREA LIGHT100150W

OUTDOOR FIXTURE SPEC SHEETS

AREA LIGHT
SELECTABLE AREA LIGHT
200300W

AREA LIGHT
SELECTABLE AREA LIGHT
200300W HV

AREA LIGHT
SELECTABLE AREA LIGHT
100150W HV

AREA LIGHT
SELECTABLE AREA LIGHT
100150W
