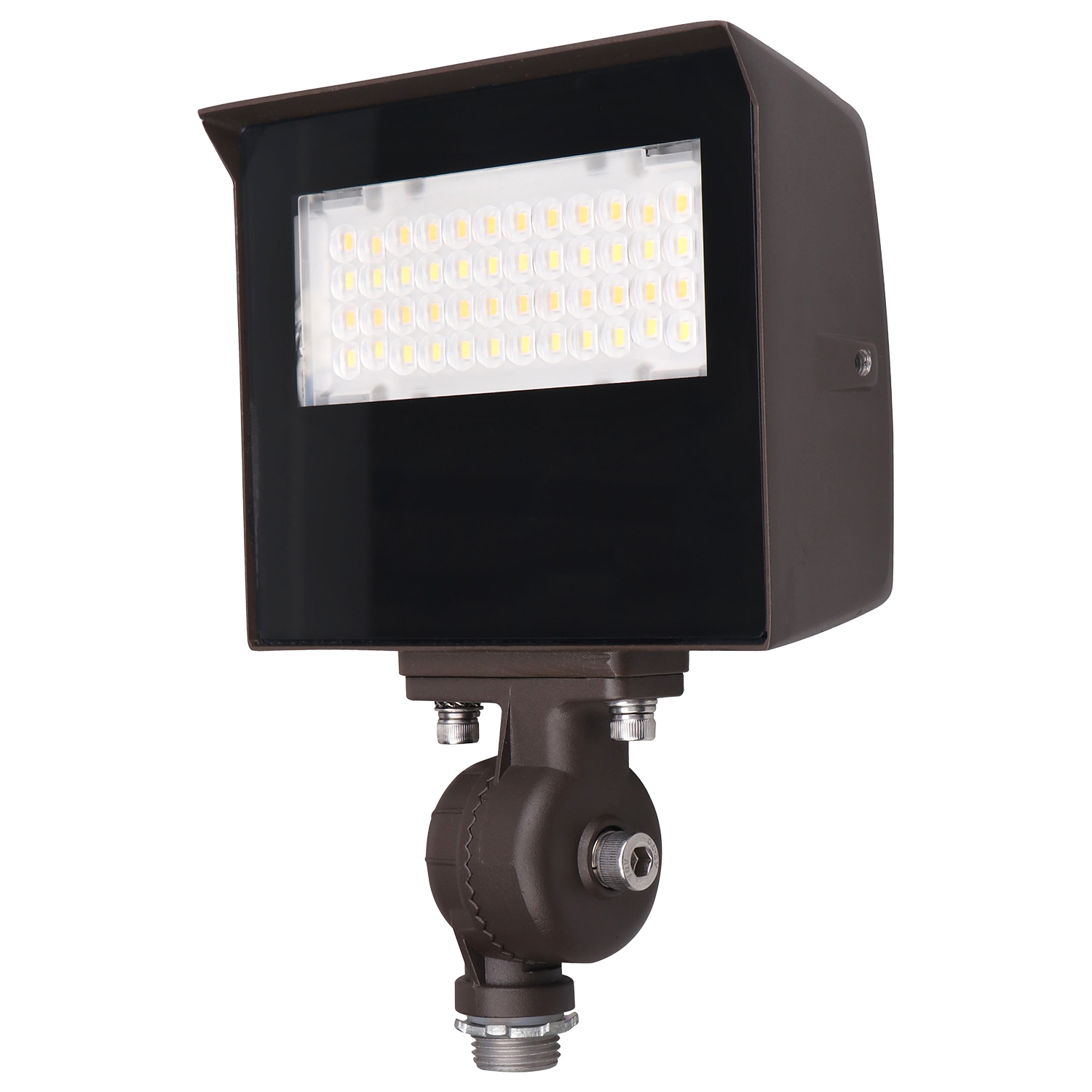

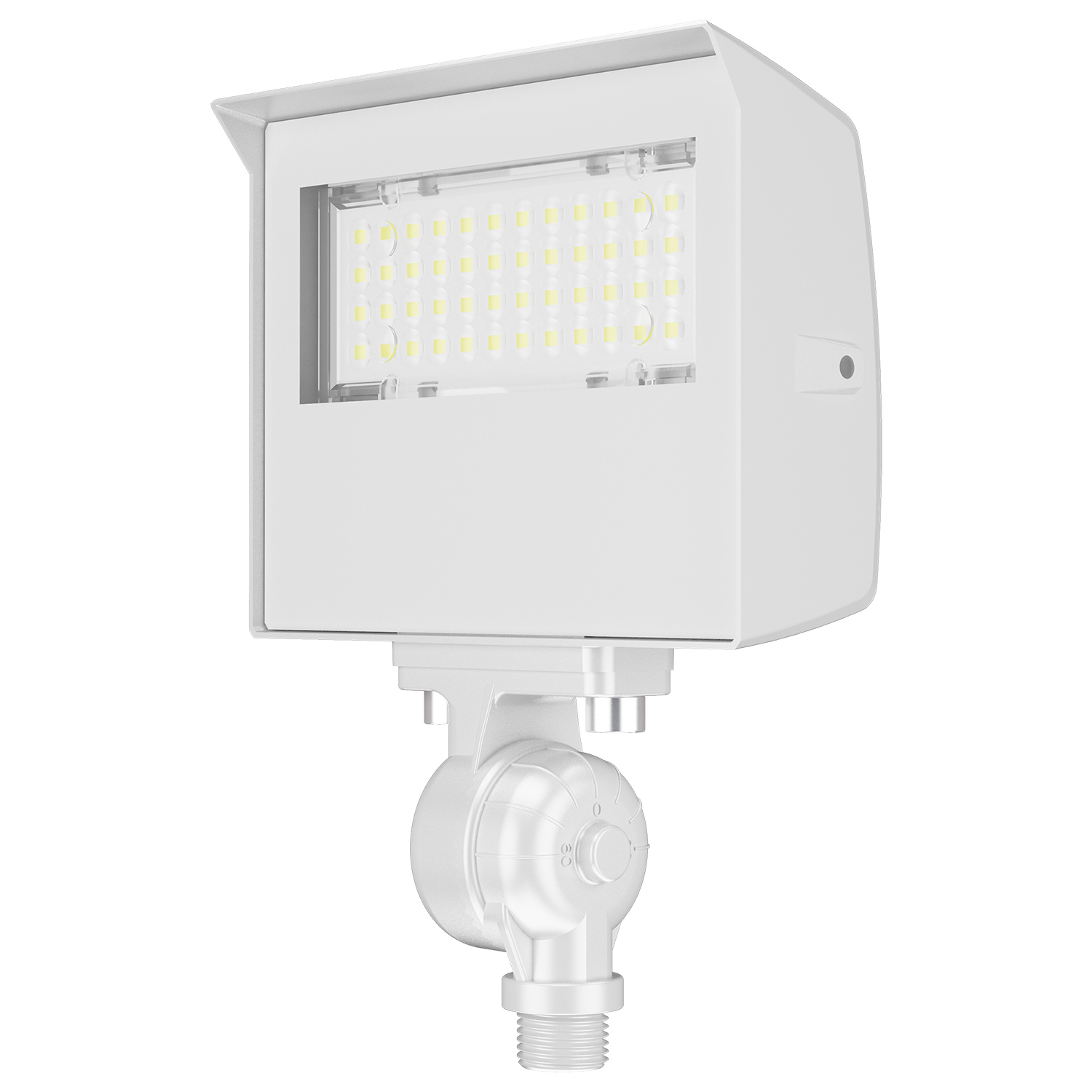

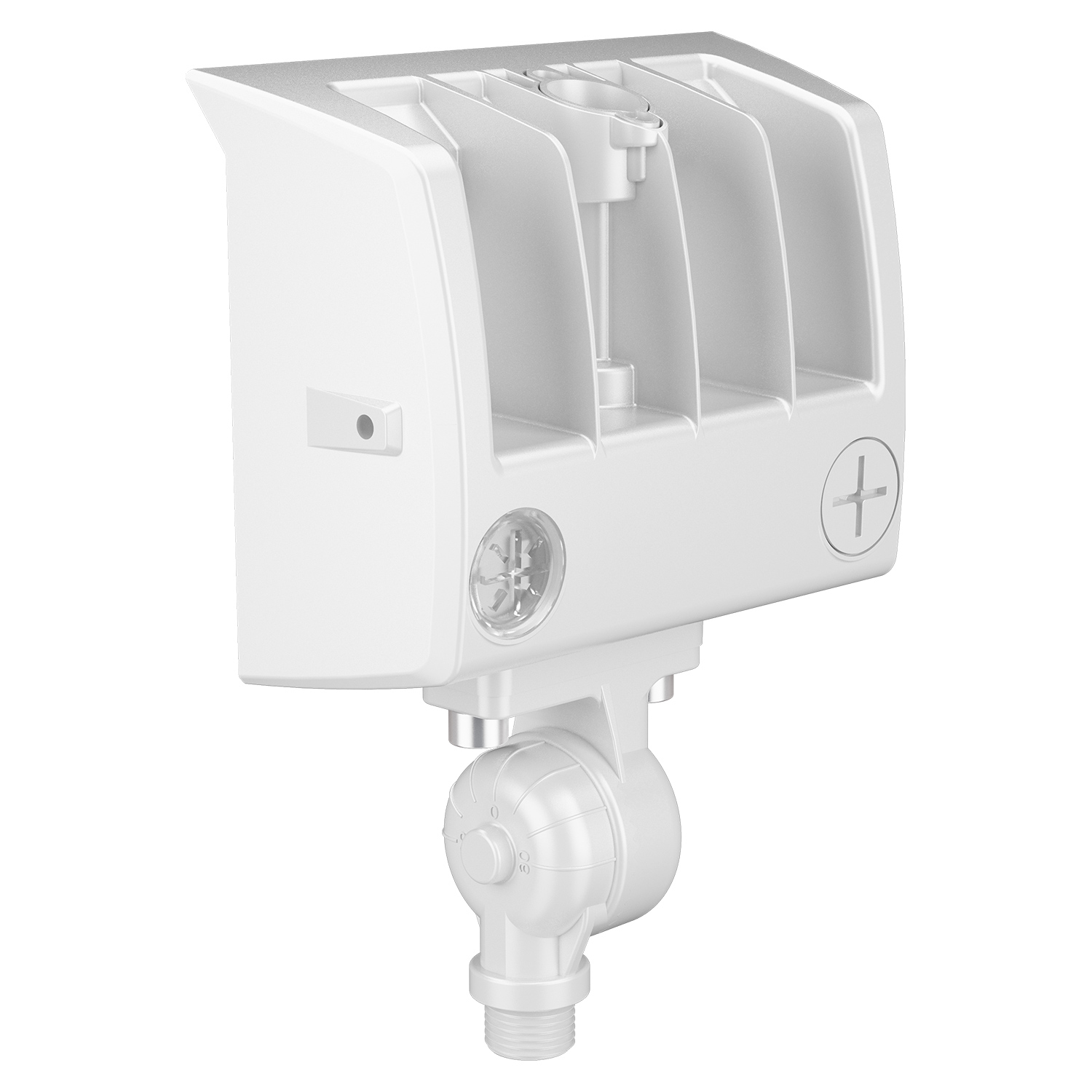

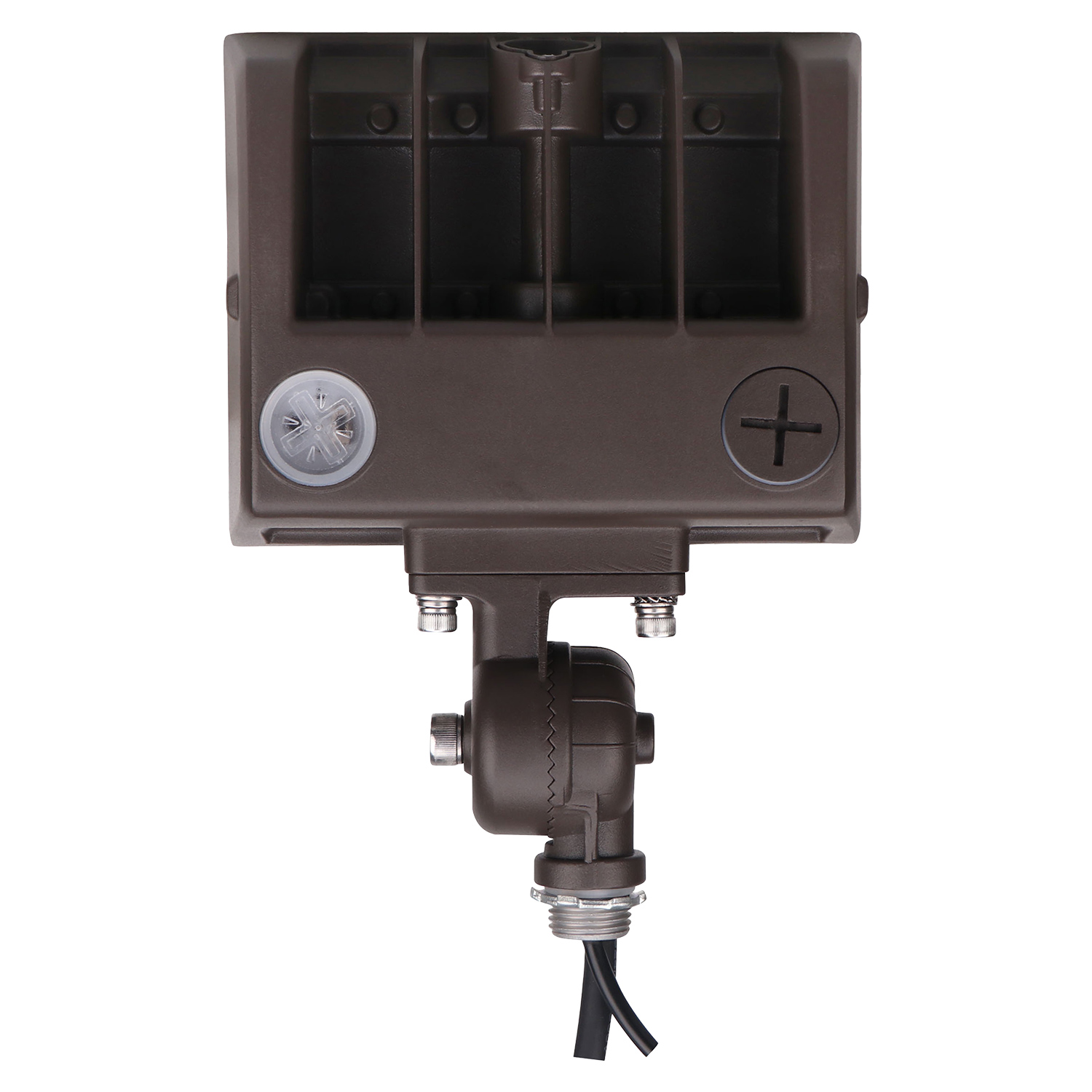

FLOODLIGHT • 1020W
KELVIN, WATTAGE, & BEAM ANGLE SELECTABLE
KEY FEATURES & BENEFITS:
-
Kelvin Selectable and Wattage Selectable
-
Beam Angle Selectable
-
Built In On/Off Photocell
DOWNLOAD RESOURCES
CatalogIES FilesInstallationSpec SheetSales Sheet
PRODUCT DATA
| Selectable Wattage: | 10W–13W–17W–20W | CRI: | >80 |
| Selectable Kelvin: | 3000K–4000K–5000K | Power Frequency: | 50/60Hz |
| Selectable Beam Angle: | 55º–75º–90º | Product Weight: | 9.92 lbs |
| Lumens: | Up to 3,000 | Dimensions: | 6.3" x 5.2" x 2.7" |
| Efficacy: | Up to 150 lm/W | Default Settings: | 20W, 5000K & 90º Beam Angle |
| Input Voltage: | 120–277 VAC | Finish: | Bronze |
CATALOG INFORMATION
| ITEM # | SELECTABLE WATTAGE | SELECTABLE KELVIN | SELECTABLE BEAM ANGLE | MAX LUMEN OUTPUT (LUMENS) | EFFICACY (LM/W) | FINISH (ff) | DLC QPL CODE |
|---|---|---|---|---|---|---|---|
| ESL-FLD-1020W-23050-BZ | 10W–13W–17W–20W | 3000K–4000K–5000K | 55º–75º–90º | Up to 3,000 | 150 | (BZ) Bronze | S-TNN3BJ |
| ESL-FLD-1020W-23050-WH | 10W–13W–17W–20W | 3000K–4000K–5000K | 55º–75º–90º | Up to 3,000 | 150 | (WH) White | S-TNN3BJ |
| ESL-FLD-3060W-23050-BZ | 30W–40W–50W–60W | 3000K–4000K–5000K | 55º–75º–90º | Up to 9,000 | 150 | (BZ) Bronze | S-V4GN06 |
| ESL-FLD-3060W-23050-WH | 30W–40W–50W–60W | 3000K–4000K–5000K | 55º–75º–90º | Up to 9,000 | 150 | (WH) White | S-V4GN06 |
| ESL-FLD-75150W-23050-BZ | 75W–100W–125W–150W | 3000K–4000K–5000K | 55º–75º–90º | 22,500 | 150 | (BZ) Bronze | S-9WZW4H |
| ESL-FLD-200320W-23050-BZ | 200W–240W–280W– 320W | 3000K–4000K–5000K | 55º–75º–90º | 48,000 | 150 | (BZ) Bronze | S-QJTT5K |
| ESL-FLD-380500W-23050-BZ | 380W–420W–450W– 500W | 3000K–4000K–5000K | 55º–75º–90º | 75,000 | 150 | (BZ) Bronze | S-82Y0KQ |
