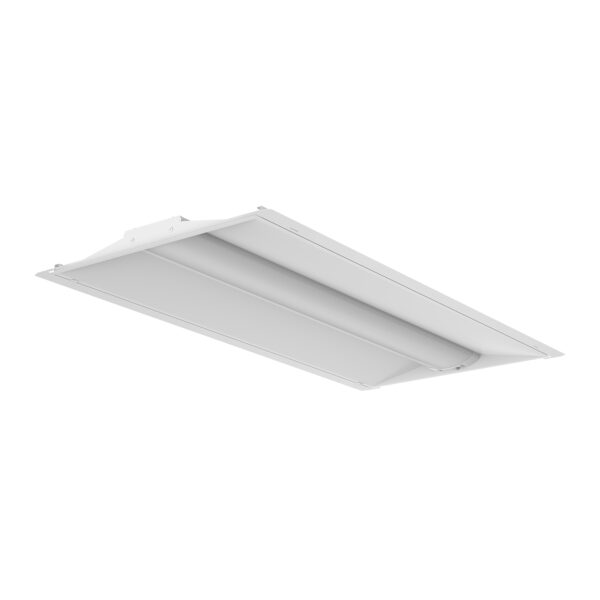

IntelliSense™ 640 SINGLE BASKET TROFFER RETROFIT • 2×4

SKU ESL-ISS-640-24-2040W-3550K Categories ,

KEY FEATURES & BENEFITS:

  • IntelliSense™ Sensor Enabled

  • Kelvin and Wattage Selectable

  • 0–10V Dimming

DOWNLOAD RESOURCES

CatalogIES Installation GuideSpec SheetSales Sheet

PRODUCT DATA

Selectable Wattage:20W–30W–40WInput Voltage:120–277 VAC
Selectable Kelvin:3500K–4000K–5000KCRI:>80
Lumens:Up to 5,870 LumensInput Frequency:50/60Hz
Efficacy:Up to 152 lm/WDimensions:47.8" x 23.8" x 1.97"

CATALOG INFORMATION

ITEM #SELECTABLE WATTAGESELECTABLE KELVIN MAX LUMEN OUTPUT MAX EFFICACY (LM/W)
1x4 SINGLE BASKET RETROFIT KIT
ESL-ISS-640-14-2030W-3550K20W–25W–30W3500K–4000K–5000K4,390152
2x2 SINGLE BASKET RETROFIT KIT
ESL-ISS-640-22-2030W-3550K20W–25W–30W3500K–4000K–5000K4,070152
2x4 SINGLE BASKET RETROFIT KIT
ESL-ISS-640-24-2040W-3550K20W–30W–40W3500K–4000K–5000K5,870152
