TWIST LOCK

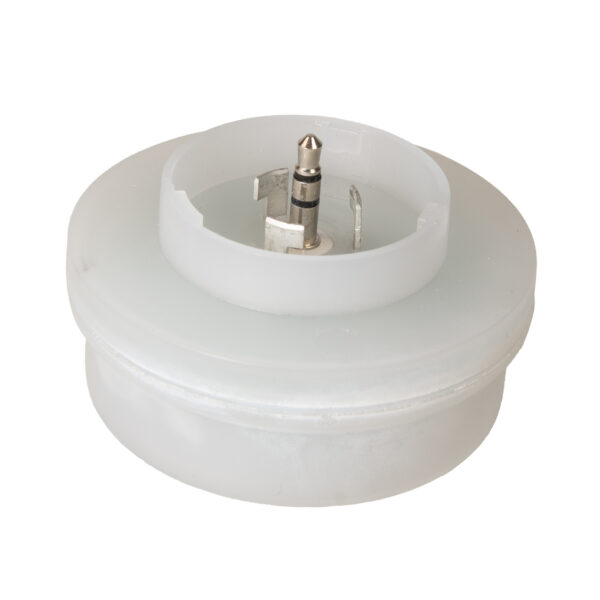

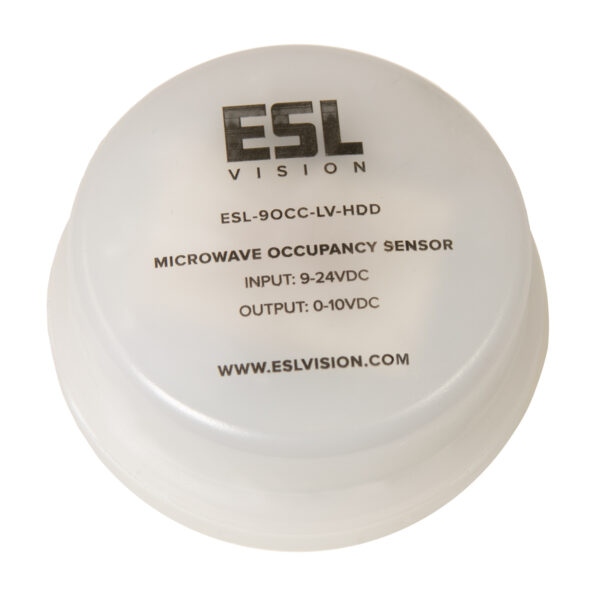

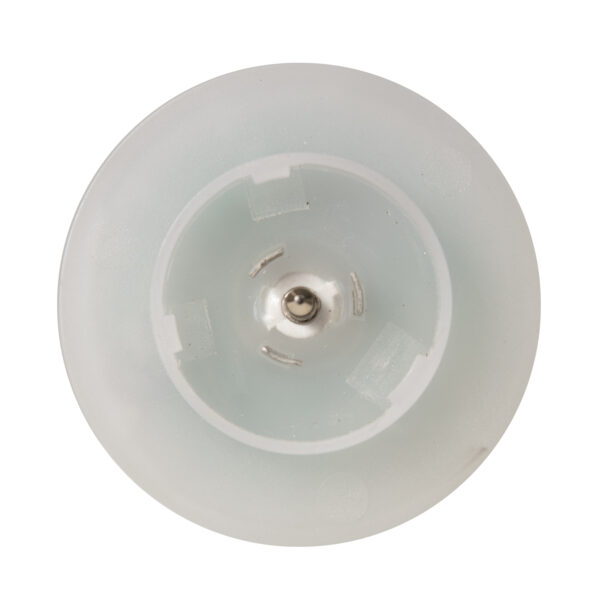

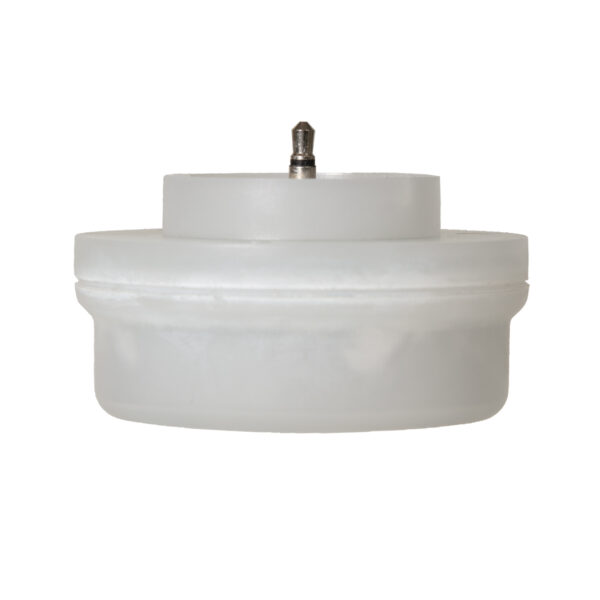

OCCUPANCY SENSOR • 9OCC

SKU ESL-9OCC-LV Categories ,

KEY FEATURES & BENEFITS:

  • Fully Adjustable High and Low Dimmed Light Levels

  • 0–10V Wireless Dimming Control

  • Programmable via Remote Control



DOWNLOAD RESOURCES

Installation GuideSpec Sheet

PRODUCT DATA

Part Number:ESL-9OCCC-LV
Power Supply:12VDCRemote Range: up to 50ft, indoor, no backlight
Sensor Type: MicrowaveDetection Radius/angle: 26 ft. @ 50ft. Height/360°
Humidity: Max 95% RHMounting Height: 50 ft. Max
Dimming Control Output: 0–10V Max. 25mA sinking currentOperatingTemperature: -4°F ~ 140°F (-20°C ~ 70°C)
