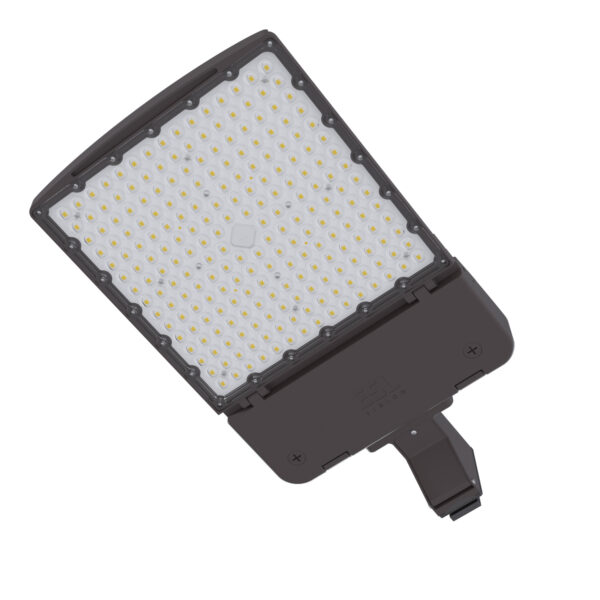

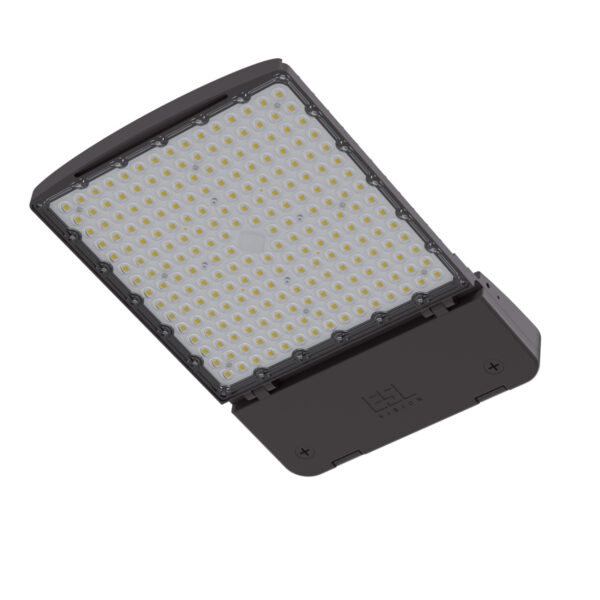

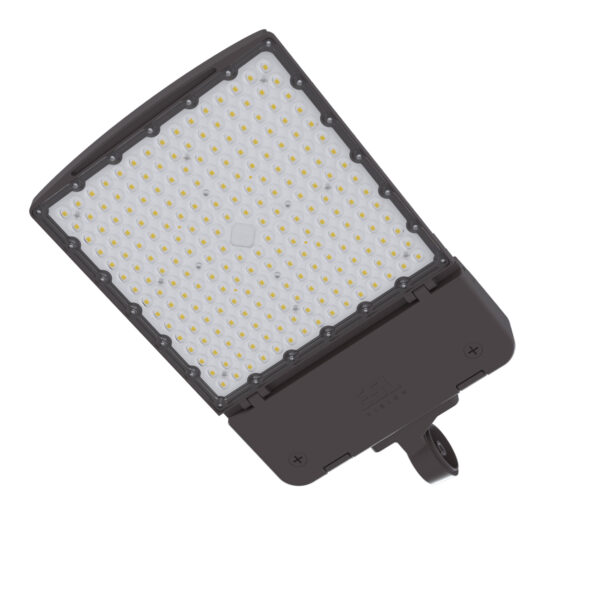

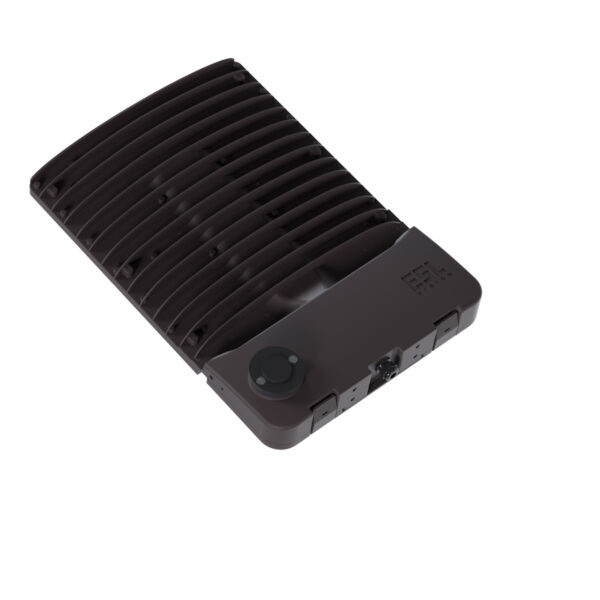

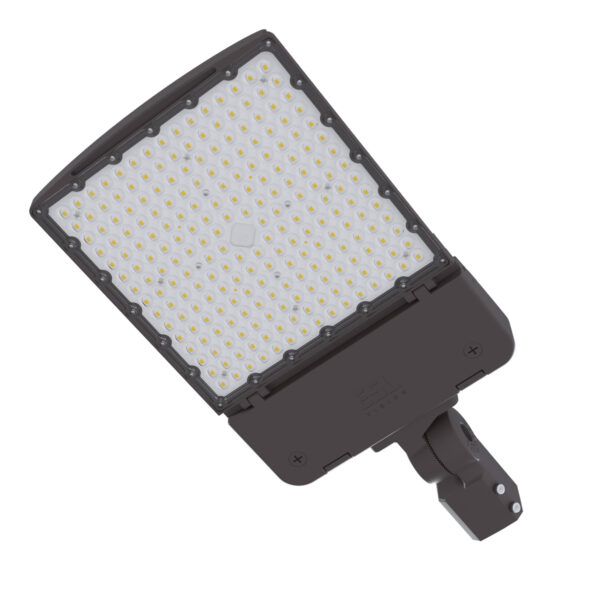

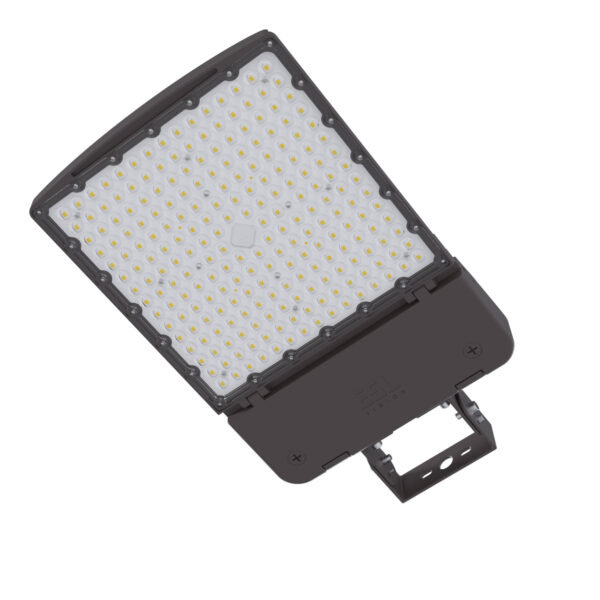

VERSA SERIES
SELECTABLE AREA LIGHT
200320W
KEY FEATURES & BENEFITS:
-
Rotatable Lens
-

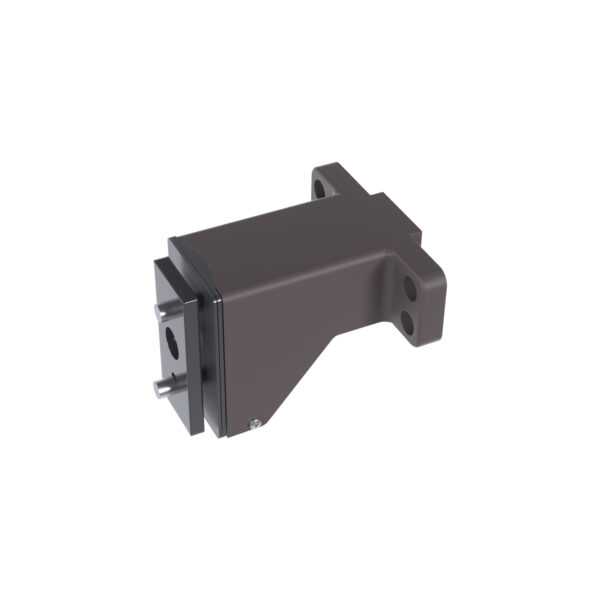

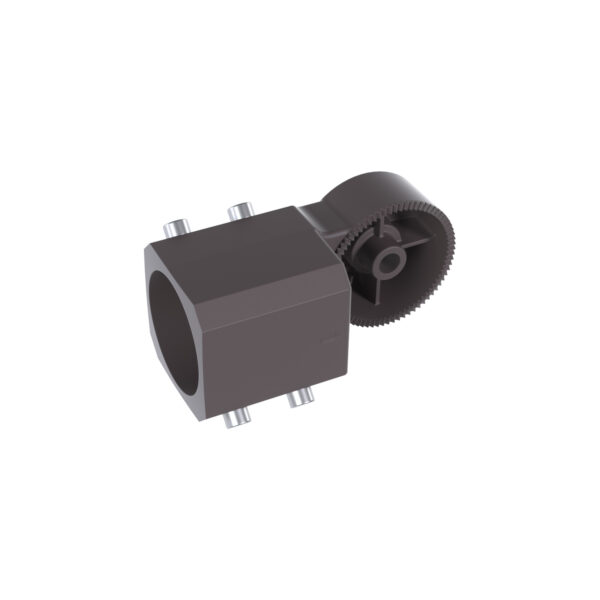

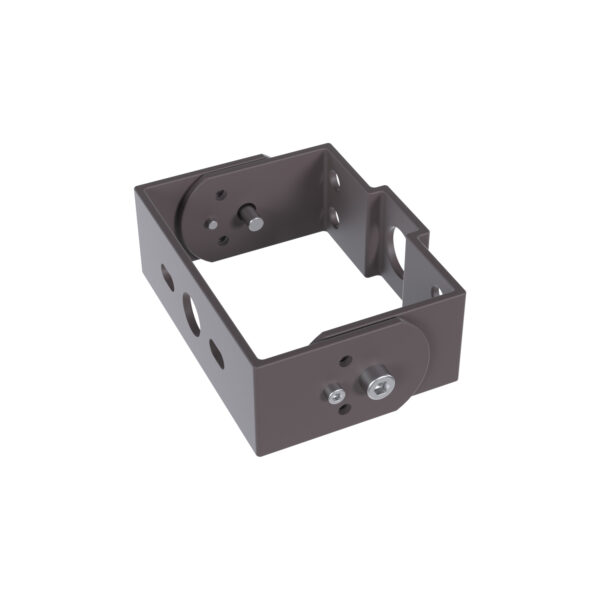

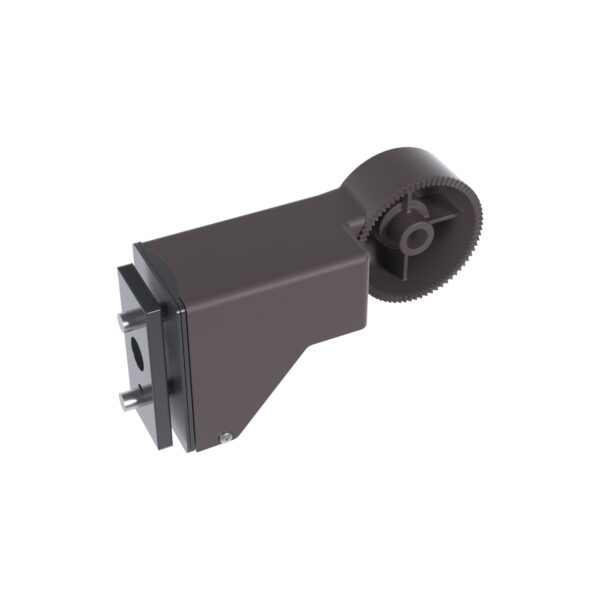

Innovative Mounting Hardware Allows for Single Person Installation
-
Wattage and Kelvin Selectable
DOWNLOAD RESOURCES
PRODUCT DATA
| Selectable Wattage: | 200W—240W—280W—320W | CRI: | >80 |
| Selectable Kelvin: | 3000K—4000K—5000K | L70 Lifetime 120,000 hrs Calculated per TM21 | |
| Lumens: | Up to 49,280 Lumens | Operating Temperature: | -40°F to 122°F |
| Efficacy: | Up to 171 lm/W | Dimensions: | 19.57” x 13.24” x 2.82” |
| Input Voltage: | 120–277 VAC, HV: 200–528 VAC | Weight: | 12.35lb |
| Surge Protection: | 10kV | Distribution Options: | Type 2: Left, Front, Right Type 3 (standard): Left, Front, Right Type 4: Left, Front, Right Type 5 |
CATALOG INFORMATION
| ITEM # | SELECTABLE WATTAGE | SELECTABLE KELVIN | MAX LUMEN OUTPUT | MAX EFFICACY (LM/W) | MAX LUMEN OUTPUT | MAX EFFICACY (LM/W) | MAX LUMEN OUTPUT | MAX EFFICACY (LM/W) | INPUT VOLTAGE |
|---|---|---|---|---|---|---|---|---|---|
| ESL-AL-75150W-13050 ESL-AL-75150W-HV-13050 | @3000K | @4000K | @5000K | 120–277 VAC, HV: 200–528 VAC |
|||||
| 75 | 3000K—4000K—5000K | 11,625 | 155 | 12,825 | 171 | 12,225 | 163 | ||
| 90 | 3000K—4000K—5000K | 13,500 | 150 | 14,850 | 165 | 14,220 | 158 | ||
| 120 | 3000K—4000K—5000K | 17,400 | 145 | 19,200 | 160 | 18,240 | 152 | ||
| 150 | 3000K—4000K—5000K | 21,000 | 140 | 23,100 | 154 | 22,050 | 147 | ||
| ESL-AL-200320W-13050 ESL-AL-200320W-HV-13050 | @3000K | @4000K | @5000K | 120–277 VAC, HV: 200–528 VAC |
|||||
| 200 | 3000K—4000K—5000K | 31,000 | 155 | 34,200 | 171 | 32,600 | 163 | ||
| 240 | 3000K—4000K—5000K | 36,000 | 150 | 39,600 | 165 | 37,920 | 158 | ||
| 280 | 3000K—4000K—5000K | 40,600 | 145 | 44,800 | 160 | 42,500 | 152 | ||
| 320 | 3000K—4000K—5000K | 44,800 | 140 | 49,280 | 154 | 47,040 | 147 | ||
