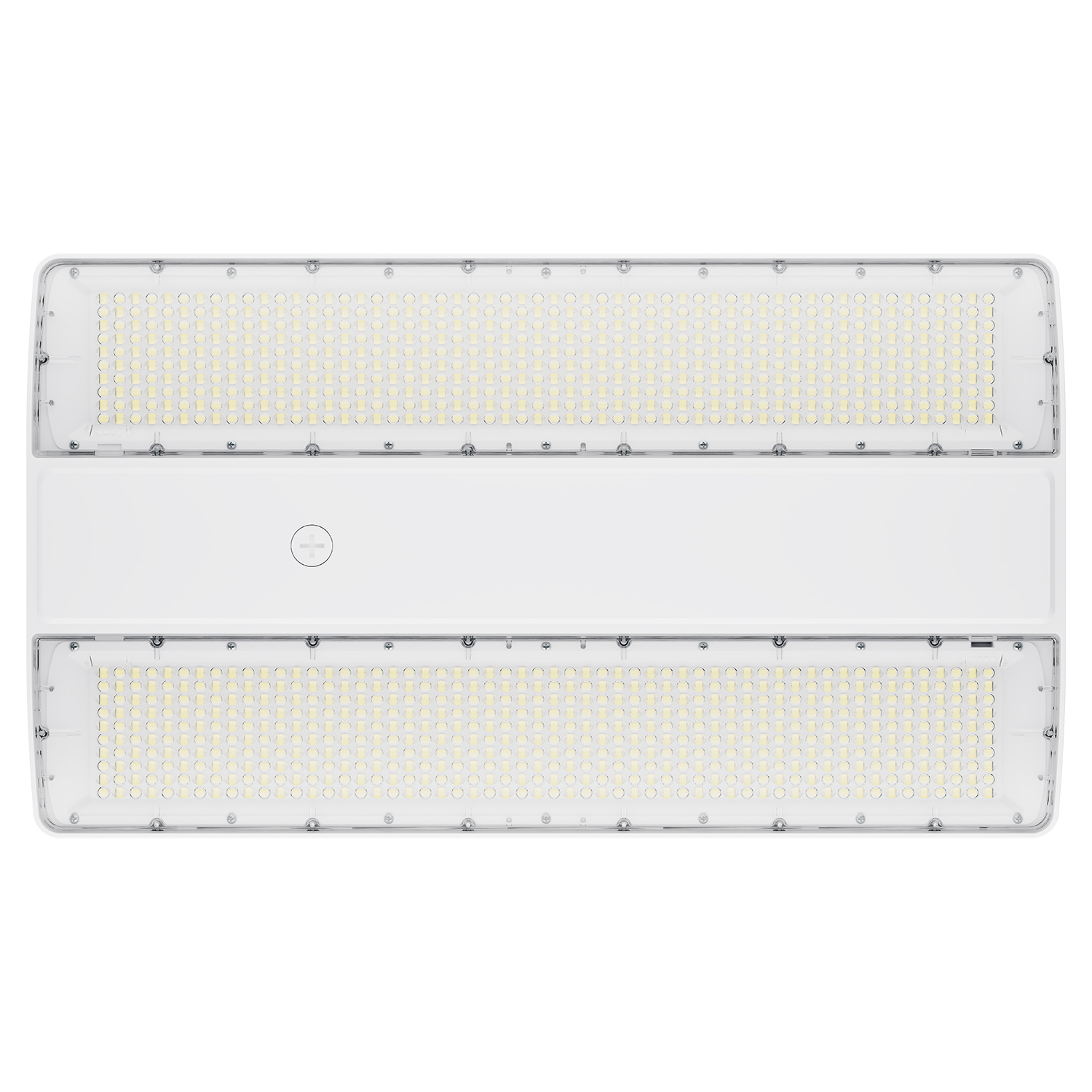

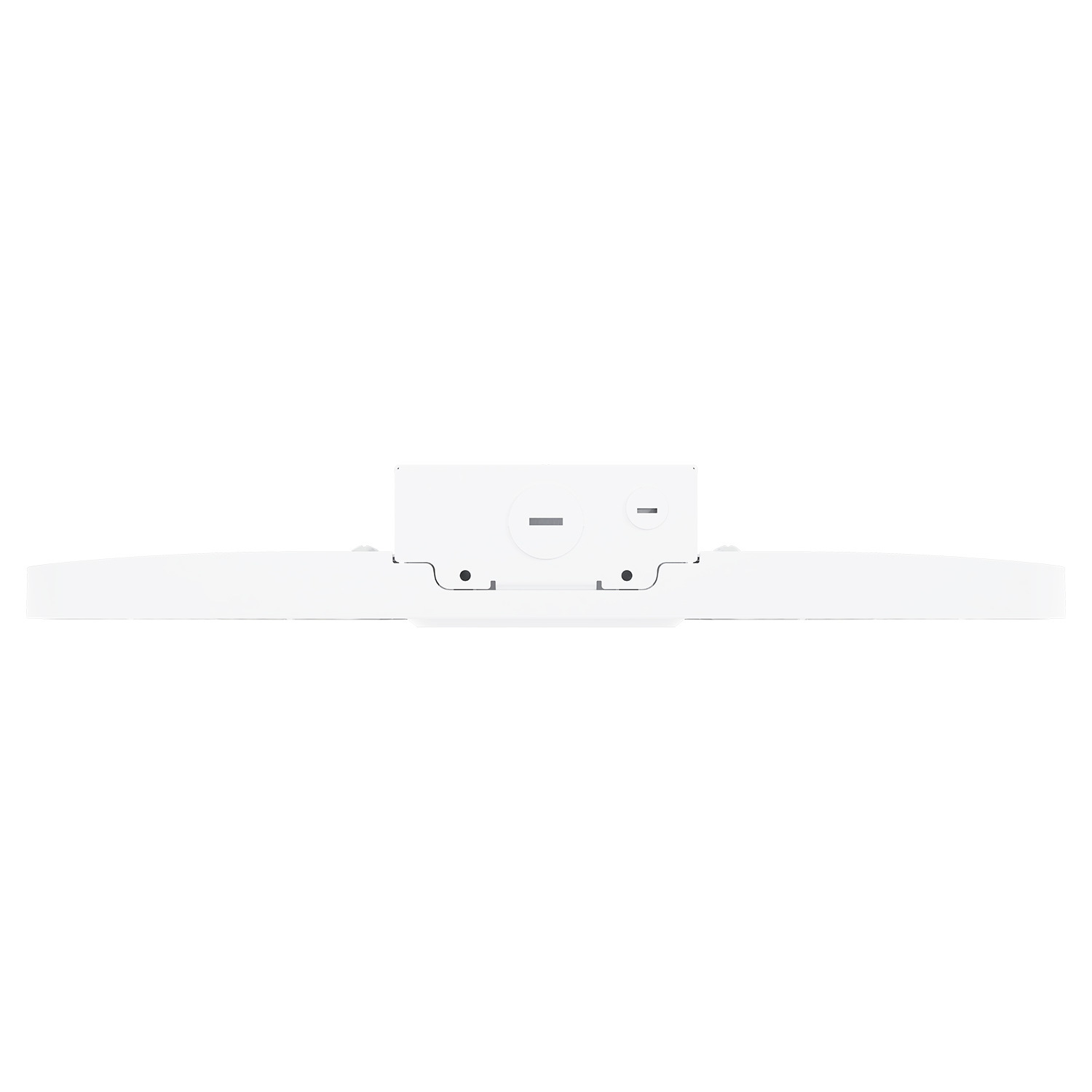

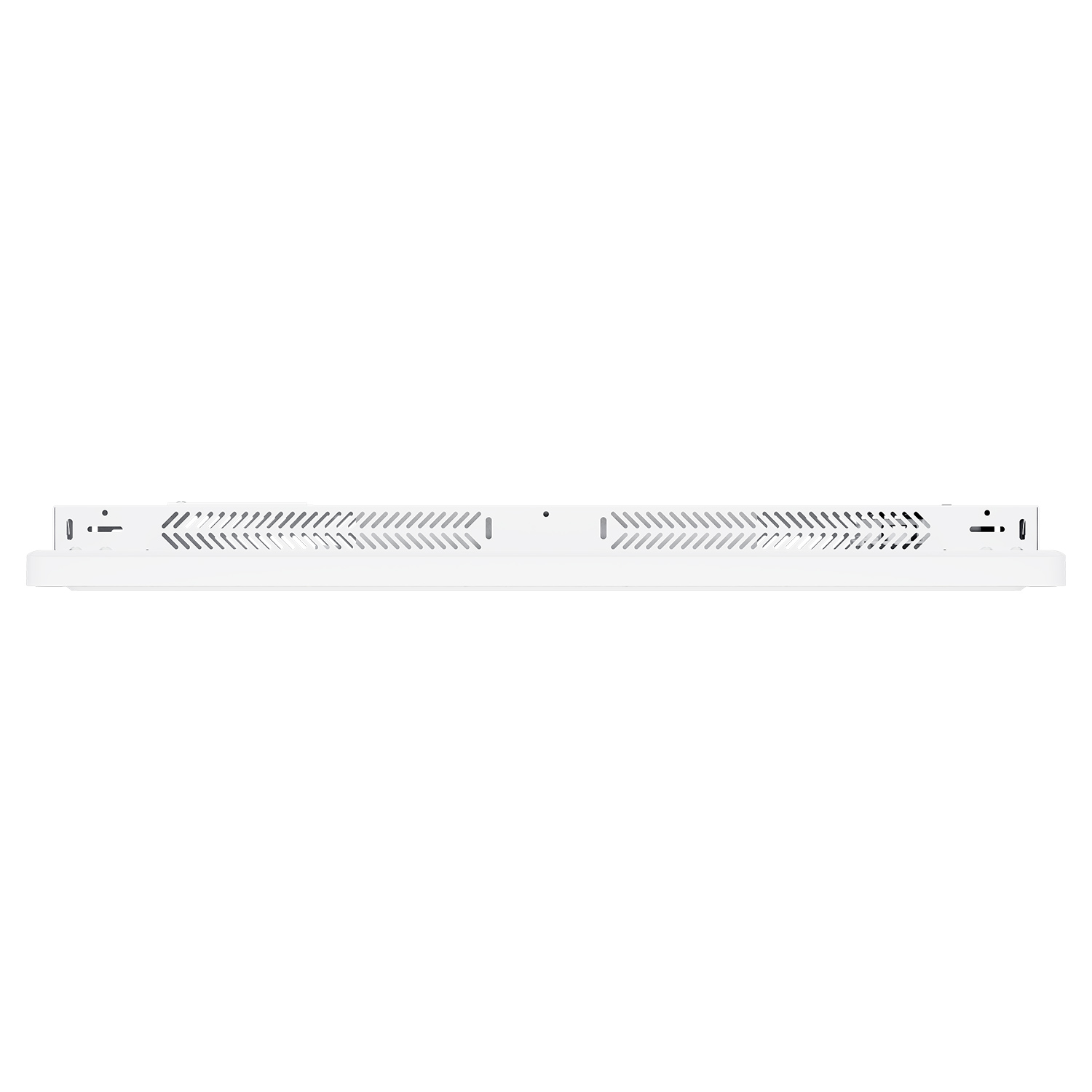

LINEAR HIGH BAY
255320W HIGH VOLTAGE
KEY FEATURES & BENEFITS:
-
Wattage, Kelvin & Beam Angle Selectable
-
IntelliSense™ Capable
-
IK10 Impact Resistance
DOWNLOAD RESOURCES
PRODUCT DATA
| Selectable Wattage: | 255W–295W–320W | CRI: | >80 |
| Selectable Kelvin: | 4000K—4500K—5700K | Input Voltage: | 277–480 VAC |
| Selectable Beam Angle: | 90x90°–45x100°–65x95° | Operating Temperature: | -40ºF to 122ºF (-40ºC to 50ºC) |
| Lumens: | Up to 51,100 | Default Settings: | 320W, 5000K & 90x90° Beam Angle |
| Efficacy: | Up to 170 lm/W |
CATALOG INFORMATION
| ITEM # | SELECTABLE WATTAGE | SELECTABLE KELVIN | MAX LUMEN OUTPUT | MAX EFFICACY (LM/W) | DIMENSIONS (LXWXH) | WEIGHT (LBS) | DLC QPL CODE |
|---|---|---|---|---|---|---|---|
| ESL-LHB-85130W-54057 | 85W–105W–130W | 4000K—5000K—5700K | 20,000 lm | 170 | 11.22" x 15.00" x 1.89" | 5.51 | |
| ESL-LHB-105165W-54057 | 105W–130W–165W | 4000K—5000K—5700K | 26,000 lm | 170 | 11.22" x 15.00" x 1.89" | 5.51 | |
| ESL-LHB-165240W-54057 | 165W–215W–240W | 4000K—5000K—5700K | 36,800 lm | 170 | 11.22" x 20.08" x 1.89" | 7.28 | |
| ESL-LHB-255320W-54057 | 255W–295W–320W | 4000K—5000K—5700K | 51,000 lm | 170 | 12.40" x 22.05" x 1.89" | 8.82 | |
| ESL-LHB-165240W-54057-HV | 165W–215W–240W | 4000K—5000K—5700K | 36,700 lm | 170 | 11.22" x 20.08" x 1.89" | 7.28 | |
| ESL-LHB-255320W-54057-HV | 255W–295W–320W | 4000K—5000K—5700K | 51,100 lm | 170 | 12.40" x 22.05" x 1.89" | 8.82 |
